The machine V108 is a vertical automatic packaging machine particularly suitable to work in different sectors such as: food, cosmetic, pharmaceutical and no food. The machine V108 is of great flexibility since it allows the packaging of products of little and medium dimensions, of regular or irregular shape, multiple packaging and prepackaged or loose product. It is a machine with mechanical movements in intermittent cycle and it works with pre-glued cases picked up from the warehouse. The format change is fast and functional and it is regulated using position indicators. The machine can be equipped with loading systems like: pick and place, counters, measures. Our pluriennal experience allows us to realize automatic feedings dedicated in detail to the product to treat.
Principle of operation

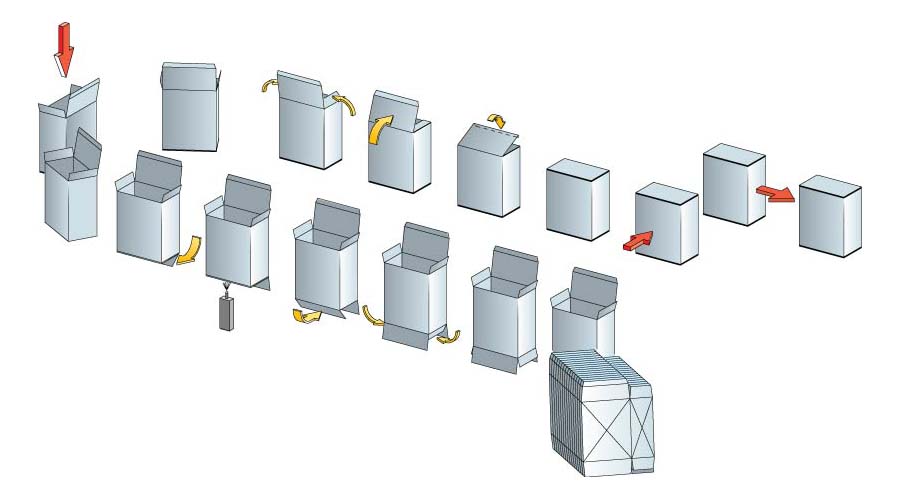

The case is picked up from the warehouse and puat in volume, after which it is inserted between the tooth of the conveyor chains. During the transfer, the case is closed in the lower part. The product is inserted manually or through an automatic loading unit. A tracer reveals the presence of the product. The case is closed in the upper part and it is moved outside the machine.
Codificador de estuches Almacén automático de prospectos Almacén automático de acanalados By-pass automático de descarga en la salida Montaje sobre ruedas Cuenta producción
Maximum speed: 60 cases/min
